Features
- Abrasion resistance
- Heat distortion resistance is high
- Impact resistance
- Great machinability
- Not known to deteriorate or become brittle easily
Colors
- Natural
- Black
- Purple
- Orange
- Red
- Blue
- Yellow
- Green

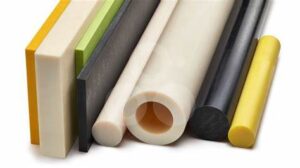

Cast Nylon
Size Availability
Rod
- 1/2″ to 14″ diameter
- 2′ to 4′ lengths common
Sheet
- Thickness 1/4” to 5”
- Standard sheet sizes: 24″x48″, 48″x96″
Nylon stands out as one of the most extensively utilized and adaptable thermoplastic resins. Its attractive combination of physical attributes and cost-effectiveness positions it as a preferred choice for a wide array of applications. The toughness, wear resistance, tensile strength, and lubricity inherent in nylon make it particularly well-suited for various mechanical machine components.
Over time, nylon has consistently proven itself as a replacement for other materials, including metal, brass, bronze, aluminum, and rubber. In machinery, substituting metal gears with nylon can yield advantages such as noise reduction, reduced need for lubrication, and prolonged gear life. Additionally, nylon’s lighter weight—only 1/7th that of bronze—contributes to its appeal. Moreover, the fabrication of nylon on most mills is achievable with high precision.
Cast Nylon, specifically, showcases all the superior engineering qualities associated with nylon: high strength, low friction, and wear resistance. Notably, the casting process allows for virtually unlimited part size and thickness without compromising the internal structure of the material. Importantly, Cast Nylon meets FDA standards, further enhancing its suitability for various applications.
Grades
- Nylons 6 and 66: These are the most common types of cast nylon. Nylons 6 and 66 refer to the specific polyamide polymers used in the manufacturing process. They offer a balance of strength, toughness, and chemical resistance.
- Nylons with Fillers: Cast nylons can be enhanced with various fillers to improve specific properties. Common fillers include glass fibers, molybdenum disulfide (MoS2) for increased lubricity, and other materials for enhanced strength, wear resistance, or dimensional stability.
- Oil-Filled Nylons: Some cast nylons are impregnated with oil to improve self-lubricating properties. This makes them suitable for applications where reduced friction and wear are critical.
- Heat-Stabilized Nylons: Heat stabilization is introduced to certain cast nylon formulations to enhance their performance in elevated temperature environments. This is especially important in applications where the material will be exposed to heat over an extended period.
- Food-Grade Nylons: Nylons that meet FDA (Food and Drug Administration) standards are specifically formulated for use in food processing and packaging applications. These formulations ensure that the material is safe for contact with food.
- Wear-Resistant Nylons: Some cast nylons are designed to provide exceptional wear resistance, making them suitable for applications where components are subject to abrasive conditions.
